Portable 3D Profilometer

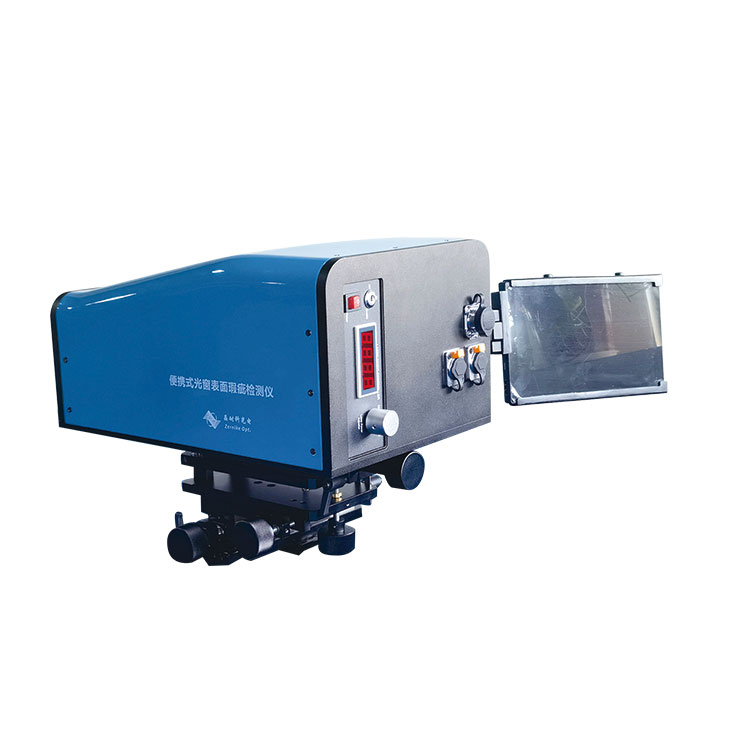

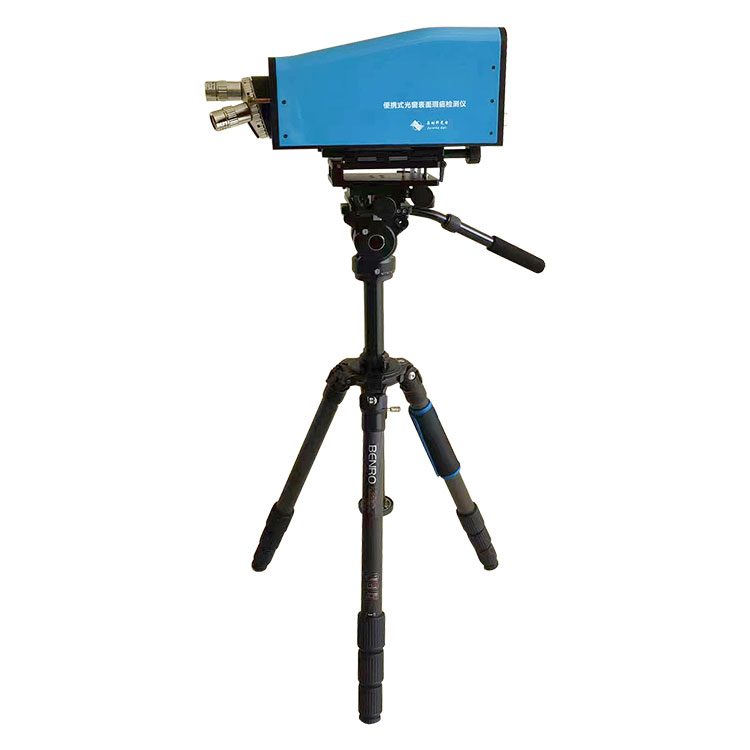

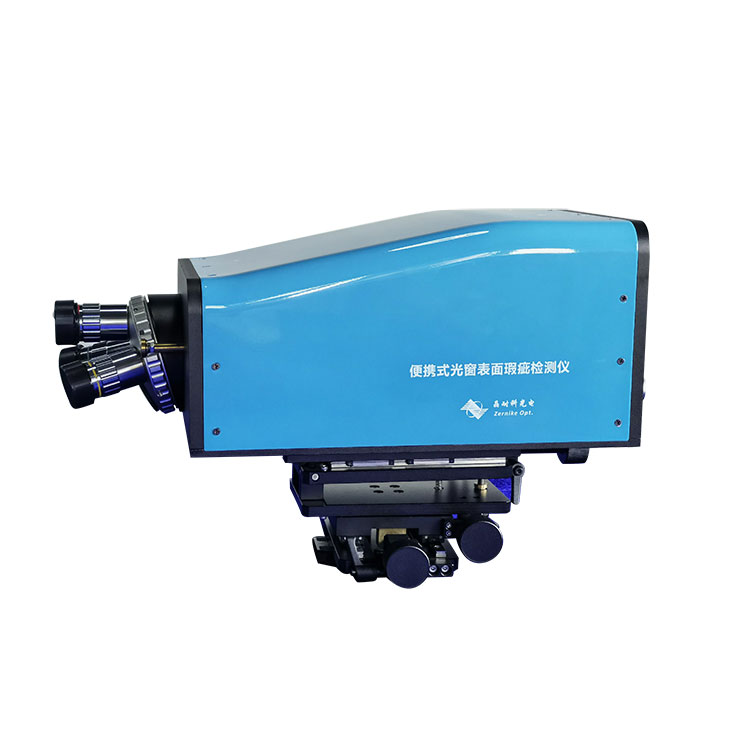

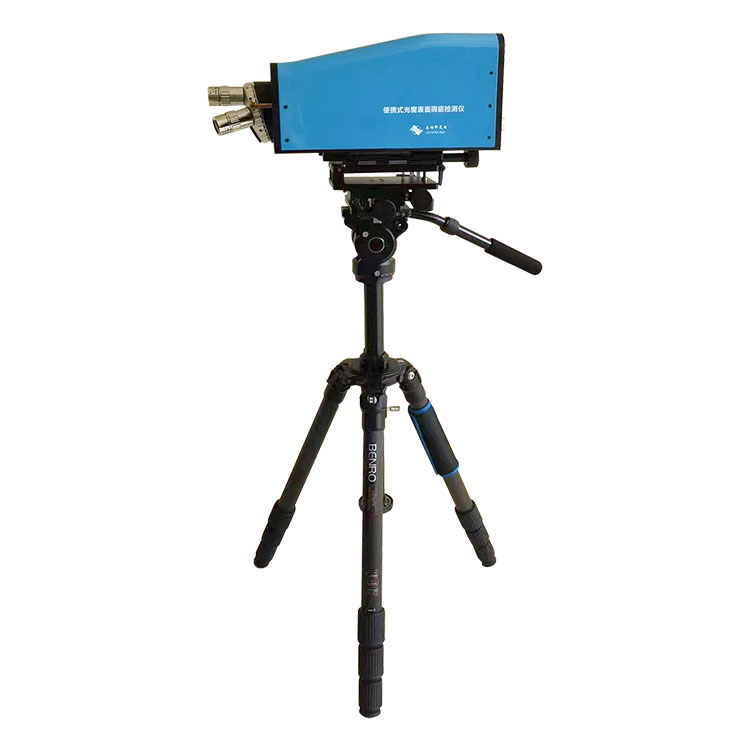

When some test components are not convenient to carry or move, the Portable 3D Profilometer works wonders. It has excellent seismic performance; the portable tripod design allows for quick deployment both indoors and outdoors; the damping gimbal combined with a fine-tuning mechanism enables coarse and fine adjustments of 120° pitch and 360° rotation, ensuring a wide range of high-precision detection.using shear differential interference technology, the system has a larger dynamic range and a broader range of applications.

BOJIONG Portable 3D Profilomete Specification

Feature Of BOJIONG Portable 3D Profilometer

◆No reference surface, good vibration resistance

◆Multi-objective lens switching, large field of view, high resolution

◆Off-site and on-site rapid layout application testing

◆Multi-angle coarse adjustment and fine adjustment, to ensure a large range of high-precision detection

◆High cost performance, compact structure, simple operation

◆Powerful digital wavefront reconstruction image processing software package

Application Of BOJIONG Portable 3D Profilometer

This BOJIONG Portable 3D Profilometer suitable for light window installation, adjustment, and detection。

BOJIONG Portable 3D Profilometer Details

In BOJIONG Portable 3D Profilomete inspection, a dual-camera imaging system is used. The system uses a microscope system to detect scratch defects on the surface of optical components for width, depth, and surface roughness detection. The imaging camera has a large field of view and can quickly find surface defects and detect scratch width; the digital wavefront interference sensor can realize 3D detection of scratch depth.

The system is equipped with XYZ three-dimensional guide adjustment and pitch and yaw adjustment, which can realize the alignment of the target and the detection optical axis of the equipment, and can be placed on a tripod to achieve different detection targets, such as large-diameter light windows and large-diameter optical elements. Adjustment detection in any direction.

The system adopts common-path interference technology. The interference system has excellent anti-vibration and anti-external interference characteristics, so it is particularly suitable for measurement and detection in workshops, outdoor and other environments. The surface shape detection interferometer and microstructure detection profilometer developed by our company using this interference sensor have been successfully used in relevant units, and their accuracy reaches the same index as the Zygo interferometer.
