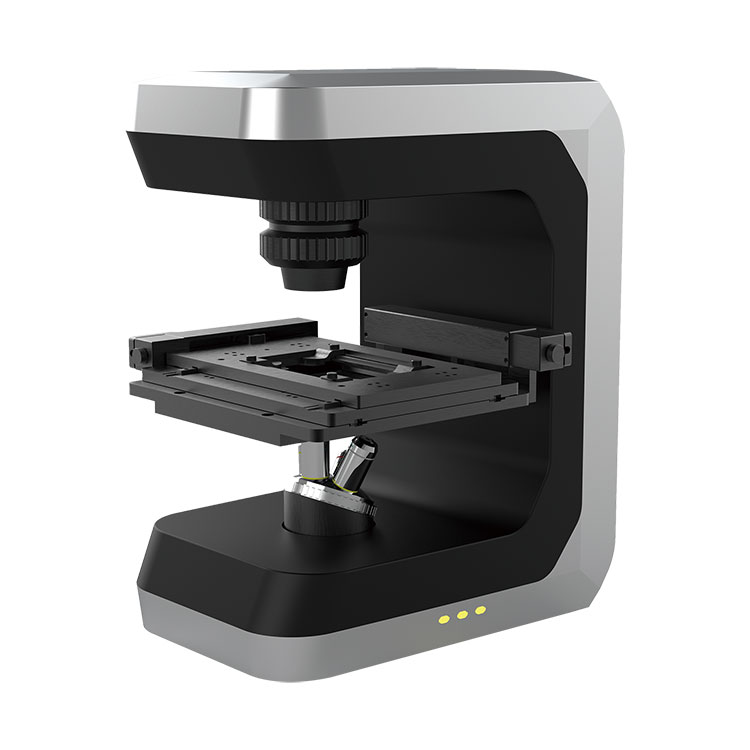

When we need to measure the length and thickness of cells, the Electric 3D Live Cell Imaging Microscope can directly outline the 3D length of the cell, and by rotating the 3D cell imaging diagram, the thickness of the cell can be observed. This achieves true label-free and non-invasive operation, while simultaneously obtaining quantitative parameters and high-quality images and data at both the single-cell and population levels. It realizes miniaturized interference measurement with high vibration resistance, making it particularly suitable for high-precision detection in fields such as biology, cell culture, and drug research.
|
Product name |
Electric 3D Live Cell Imaging Microscope |
|
size |
355mm (length) x 258mm (width) x 437mm (height) |
|
X Y travel range (manual) |
X：130mm，Y：90mm |
|
X Y stroke range (electric) |
X：110mm，Y：75mm，Wireless control, supporting multi-point automatic inspection |
|
Focusing on Z-axis travel (electric) |
25mm stroke, wireless control, 0.001mm adjustment accuracy |
|
Testing samples |
Biological cells - can be directly placed in culture dishes for testing - can undergo live examination, transparent material micro/nanostructures |
|
Imaging pixels |
2048*2048 |
|
Resolution (Vertical and Horizontal) |
2nm (longitudinal), 1μm (transverse) |
|
Lighting source |
white light |
|
Microscopic objective |
Universal objective lens connector, supporting various brands, 5X, 10X, 20X, 50X, 100X |
|
Real time display frame rate |
10HZ |
|
software system |
3D imaging of cells, real-time video recording of cell morphology, cell tracking, cell segmentation, counting, etc |
|

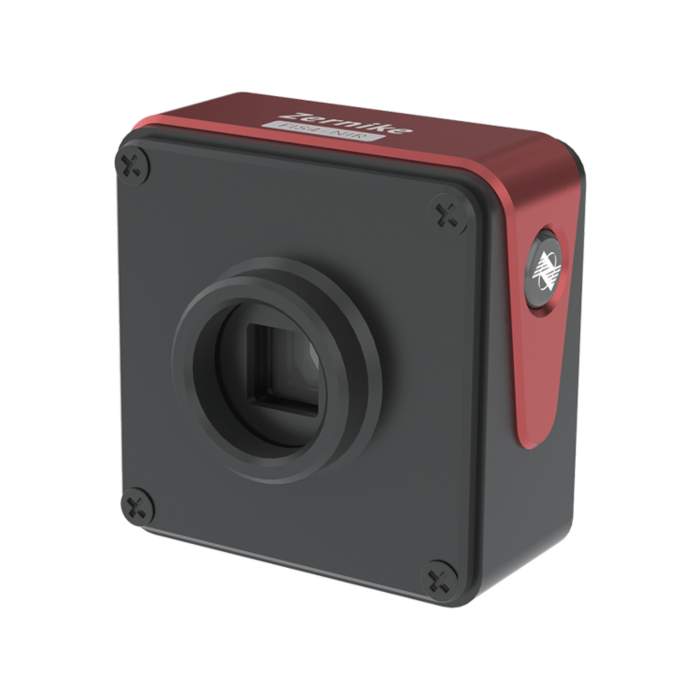

Adaptable sensors |
FIS4-Cell |
◆ LED white light illumination
Maximize the maintenance of the living environment of cells
◆ FIS4 interferometric imaging
High precision acquisition of three-dimensional cellular morphology and structure
◆ Support for bright field imaging
Support real-time observation of cell microstructure in Mingchang
◆ Different magnification support
Supports 5X, 10X, 20X, 50X,100X and other magnification observations
◆ Electric load transfer
Electric two-dimensional loading platform, supporting live recording and observation of different culture dishes
◆ Electric focusing
Electric focusing, supporting multi position focusing recording
◆ Real time dynamic recording of cells
Recording real-time dynamics of living cells for long-term observation and recording of living cell processes
◆ Curve generation
Support various analysis curve generation functions
|
Real time dynamic recording of cells ——displacement of red blood cells at different times and 3D images |
||
|
Real time dynamic recording of cells ——during the ESC live cell autophagy process Changes in cell state at 20x magnification: 0 hours, 4 hours, and 8 hours |
||
|
Cell 2D test results |
Cell contour map |
3D cell map |
Small size - can operate stably in the incubator for a long time and perform delayed imaging analysis under normal physiological conditions.
Real time monitoring - Real time monitoring of individual cells while obtaining population data and providing complete quantitative cellular morphological parameters.
Multiple data - can be reanalyzed for the same sample or result to obtain more experimental data.
Widely applicable - can be used for research on cell proliferation, differentiation, migration, apoptosis, toxicology, and other aspects.
Intelligence - a concise and practical intelligent image analysis software that automatically performs high content quantitative analysis on the obtained images.
No damage - no labeling or staining is required, no phototoxicity, and the true growth status of the recorded cells is restored.
This BOJIONG Electric 3D Live Cell Imaging Microscope provides a fast, accurate, and non-invasive solution for automatic counting of adherent cells in incubators. Present images and results in real-time and clearly in a graphical manner, generate growth curves that change over time, and simultaneously monitor cell morphology, proliferation rate, and convergence.
Research on Living Cell Proliferation
Cell proliferation assay is widely used in biomedical science, especially in testing the efficacy and cytotoxicity of drugs and chemicals. These measurements are typically used to understand how drug dosage levels affect cells over time, typically by creating cell growth curves to determine the inhibitory concentration of the semi maximal effect. BOJIONG Electric 3D Live Cell Imaging Microscope provides real-time cell count and confluence growth curves to evaluate live cell growth by providing in vivo cell proliferation assays. Measure the cell growth of individual cells and cell populations.
BOJIONG Electric 3D Live Cell Imaging Microscope combines upright and inverted microscopes, combining the advantages of both. It is convenient and compact, with multiple functions in one machine. Users can easily switch between upright and inverted configurations through rotation, eliminating the need to purchase upright and inverted microscopes separately for different samples. One machine can image multiple samples, reducing costs and saving space.
By flipping the main body of the microscope and flipping the fixed mobile platform, the 3D live cell microscope can be flipped for easy magnification switching and observation in different occasions.
By flipping the main body of the microscope and flipping the fixed mobile platform,BOJIONG Electric 3D Live Cell Imaging Microscope can be flipped for easy magnification switching and observation in different occasions.
|
The mobile platform is fixed on the main body of the microscope through magnetic suction, and electric or manually controlled mobile platforms can be replaced as needed. |
|
|
|
Electric control stroke X:110mm,Y:75mm Table size：260mm×153mm |
|
|
|
Manual control stroke X: 190mm, Y: 90mm Table size：220mm×170mm |
This device can be equipped with microscope objectives of different magnifications: 5X, 10X, 20X, 50X, 100X; Observing the sample on an ultra-high definition display screen, it has unparalleled clarity.
The Electric 3D Live Cell Imaging Microscope is equipped with powerful image analysis software that features an intuitive interface and guides users through a straightforward step-by-step process, from experimental setup to result analysis. It allows for the easy creation of color videos and images suitable for peer-reviewed publications. All data can be exported to Excel for further analysis.
