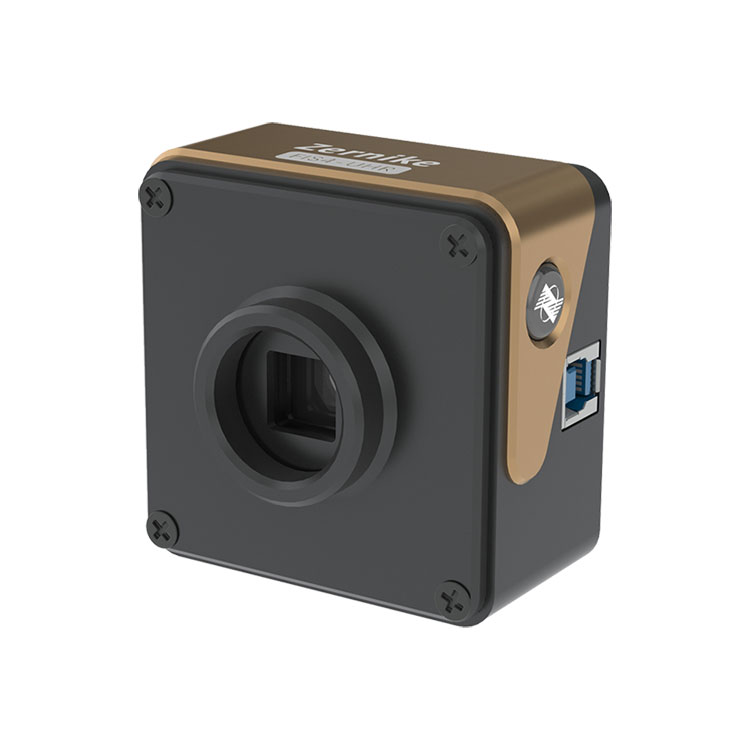

Ultra High Resolution Four-wave Interferometric Sensor

BOJIONG a leading Ultra High Resolution Four-wave Interferometric Sensor manufacturer and supplier in China, supports precise measurement and analysis of optical performance. Our products are widely used in key areas such as aerospace, optical manufacturing, energy research, and biomedical. We have established a sound operating mechanism. We look forward to establishing sincere cooperative relationships with global customers to jointly create outstanding achievements.

Send Inquiry

Product Description

Compared to traditional microlens array Hartmann sensors, the BOJIONG Ultra High Definition Four-wave Interferometric Sensor not only offers more phase points, ensuring high resolution and the ability to reveal detailed features in measurements, but also has a wider adaptive bandwidth and a greater dynamic range, enabling it to meet a broader range of measurement needs and conditions.

The ultra-high definition resolution of the BOJIONG sensor reaches 512×512 (262,144 phase points), complemented by its wide spectral response from 400 to 1100 nanometers, ensuring high accuracy and reliability under various optical conditions. Moreover, it supports the display of 10 frames of full-resolution real-time 3D results, providing users with immediate, dynamic measurement outcomes, which significantly enhances work efficiency.

Ultra High Resolution Four-wave Interferometric Sensor Specification：

Wavelength range	400nm~1100nm
Target size	7.07mm×7.07mm
Spatial resolution	23.6μm
Sampling resolution	2048×2048
Phase resolution	300×300（90000pixel）
Absolute accuracy	＜2nmRMS
Dynamic range	10nmRMS
Sampling rate	110μm（150λ）
Real-time processing speed	24fps
Interface type	10Hz（At full resolution）
Dimension	GIGE
Weight	56.5mm×43mm×41.5mm
Wavelength range	about 120g

Feature Of Ultra High Resolution Four-wave Interferometric Sensor：

◆Broad spectrum 400nm~1100nm band

◆2nm RMS high phase resolution

◆Ultra-high resolution of 512×512 (262144) phase points

◆Single-channel light self-interference, no reference light required

◆ultra-high vibration resistance, no need for optical vibration isolation

◆Just like imaging, easy and fast optical path construction

◆Supports collimated beams and large NA converged beams

Application Of Ultra High Resolution Four-wave Interferometric Sensor：

ThisBOJIONG Ultra High Resolution Four-wave Interferometric Sensor used in laser beam wavefront detection, adaptive optics, surface shape measurement, optical system calibration, optical window detection, optical plane, spherical surface shape measurement, surface roughness detection.

laser beam wavefront detection

Optical planar surface shape measurement

Optical spherical surface shape measurement

Aberration measurement of optical systems

Optical window piece detection

Measurement of lattice distribution inside the material

Adaptive optics - wavefront detection response in Zernike mode

High Resolution Four-wave Interferometric Sensor Details

BOJIONG High Resolution Four-wave Interferometric Sensor developed by a team of professors from Zhejiang University and Nanyang Technological University of Singapore, Adopting domestic patented technology, this sensor combines diffraction and interference to achieve four-wave transverse shear interference, offering superior detection sensitivity and vibration resistance.

It can perform real-time, high-speed dynamic interferometry without vibration isolation, with a real-time measurement frame rate exceeding 10 frames. The FIS4 sensor's measurement range covers 200nm to 15μm, featuring an ultra-high phase resolution of 512×512 (260,000 phase points). It has measurement repeatability better than 1/1000λ (RMS) and a sensitivity of 2nm.

This sensor is suitable for laser beam quality analysis, plasma flow field detection, real-time measurement of high-speed flow field distribution, optical system image quality evaluation, microscopic profile measurement, and quantitative phase imaging of biological cells.

FIS4 Technical parameters of each series of products

Product	FIS4-UV	FIS4-HR	FIS4-UHR	FIS4-HS	FIS4-Cell	FIS4-NIR
Wavelength range	200~450nm	400~1100nm	400~1100nm	400~1100nm	400~1100nm	900~1200nm
Target size mm²	13.3×13.3	7.07×7.07	13.3×13.3	10.24×10.24	7.07×7.07	13.3×13.3
Spatial resolution	26μm	23.6μm	26μm	24.4μm	23.6μm	26μm
Image pixel	-	2048×2048	-	-	2048×2048	-
Phase output resolution	512×512 （262144pixel）	300×300（90000pixel）	512×512（262144pixel）	420×420（176400pixel）	300×300（90000pixel）	512×512（262144pixel）
Phase resolution	＜2nmRMS	＜2nmRMS	＜2nmRMS	＜2nmRMS	＜2nmRMS	＜2nmRMS
Absolute accuracy	10nmRMS	10nmRMS	15nmRMS	10nmRMS	10nmRMS	15nmRMS
Dynamic range	90μm （256λ）	110μm （150λ）	162μm （256λ）	132μm （210λ）	110μm （150λ）	270μm （256λ）
Sampling rate	32fps	24fps	45fps	107fps	24fps	45fps
Real-time processing speed	10Hz (Full resolution)	10Hz (Full resolution)	10Hz (Full resolution)	10Hz (Full resolution)Supports delayed batch processing	10Hz (Full resolution)	10Hz (Full resolution)
Interface type	USB3.0	GIGE	USB3.0	GIGE	GIGE	USB3.0
External interface	-	-	-	-	C port	-
Size mm²	70x46.5x68.5	56.5x43x41.5	70x46.5x68.5	56.5x43x41.5	56.5x43x41.5	70x46.5x68.5
weight	about240g	about120g	about240g	about120g	about120g	about240g
